Model: OM1   HM1  6960

Technical Specification

Rated Voltage:             DC 24V

Current Without Load: 0.5A

Rated Current:             3.5A

Maximum Torque:        0.20N.m

Motor Speed:               2600RPM / 3300RPM

Installation Size:          34.5mm

Installation Diameter:  M5

Working Frequency:   10%(2 minutes longest

                                    continuous operation)

Working Temperature: -5-45℃

Direct Out:                   Hall S

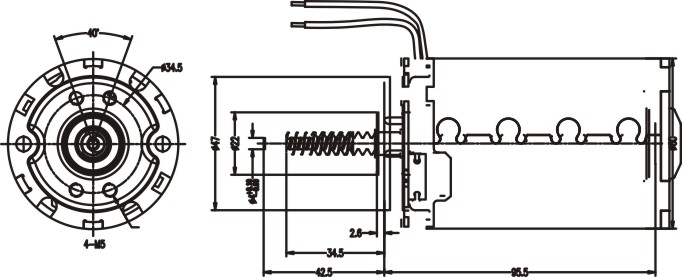

Installation Dimension
